Product Description
Product Code
15201130052 - RAL 7035 15201130060 - RAL 9016
* RAL 9010 and RAL 9002 can be produced according to MOQ.

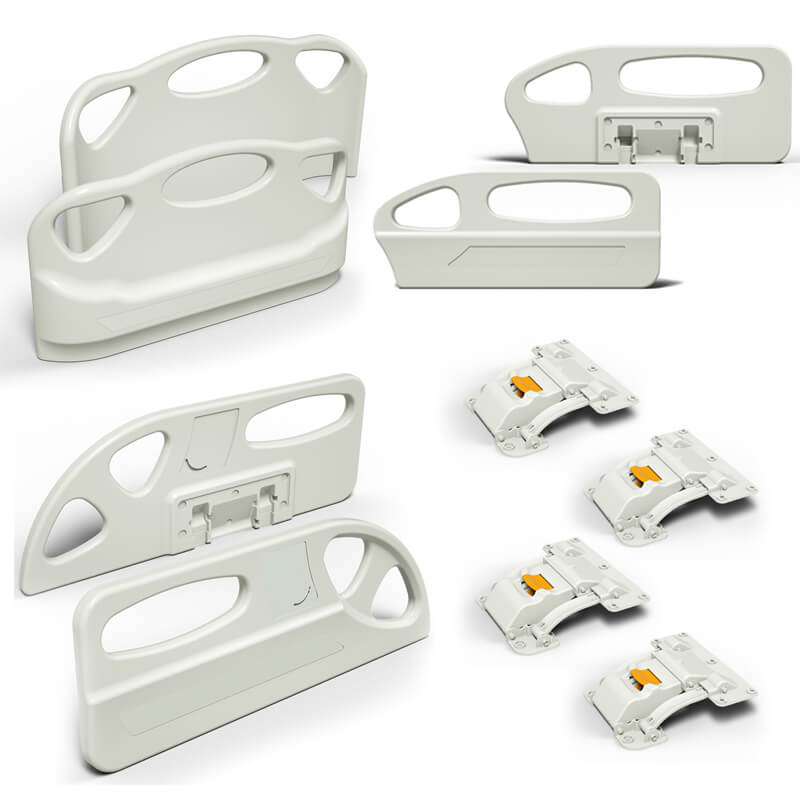

2 Pieces Kant Hospital Bed Head Boards
Kant Series hospital bed head boards are designed according to EN 60601 - 2 - 52 standards in accordance with new (generation) electronic hospital beds.Technical Specifications- Blow Molded, Reinforced PP (Polypropylene)
- Antibacterial (Added Silver Ion)
- Flame Retardant
- Crush Resistant
- Smooth Surface – Easy to Clean
- Length: 980 mm
- Height: 500
- Width: 40 mm
- Thickness: 3,5/4,5 mm
- Weight: 2900 gr
2 Pieces Hospital Bed Head Side Rails
Kant Series hospital bed side rail boards are designed for the new electronic hospital bed standard EN 60601-2-52.Technical Specifications- Blow Molded, Reinforced PP (Polypropylene)
- Antibacterial (Added Silver Ion)
- Flame Retardant
- Crush Resistant
- Smooth Surface – Easy to Clean
- Length: 925 mm
- Height: 345 mm
- Width: 36 mm
- Thickness: 3,5 mm. to 4,5 mm.
- Weight: 1800 gr.
2 Pieces Hospital Bed Foot Side Rails
Kant Series Hospital Bed Side Rail Boards are designed for the new electronic hospital bed standard EN 60601-2-52.Technical Specifications- Blow Molded, Reinforced PP (Polypropylene)
- Antibacterial (Added Silver Ion)
- Flame Retardant
- Crush Resistant
- Smooth Surface – Easy to Clean
- Length: 832 mm.
- Height: 345 mm.
- Width: 36 mm.
- Thickness: 3,5 mm. to 4,5 mm.
- Weight: 1700 gr.
4 Pieces Hospital Bed Side Rail Mechanisms
Hospital bed side rail mechanism set is designed for the new electronic hospital bed standard EN 60601-2-52 and in accordance with EN 60601-1 electronic standard of hospital beds. PATENTED mechanism has an innovative piston which provides slow lift down and easy lift up to caregivers.Technical Specifications- Aluminium Injection, Reinforced Aluminium
- Epoxy Powder Coated (Standard RAL 7035 and RAL 9010)
- High Weight Load Capacity (Tested by 150 kg.)
- Patented Piston Technology which Works into the Main Frame as Closed System
- Smooth Surface – Easy to Clean
